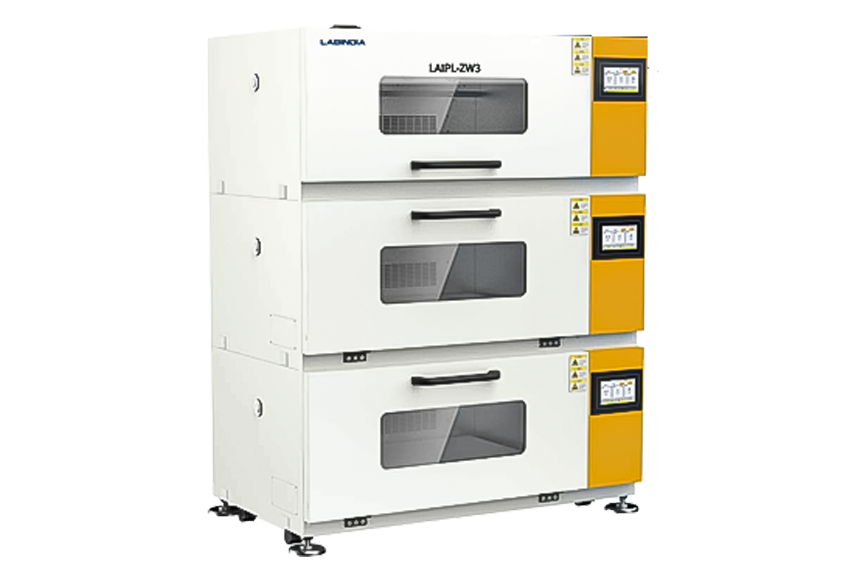

Stackable Large Shaker Incubators

The Large Stackable Shaker Incubator is a dependable and space-conscious incubation solution for modern laboratories. Available in single, double, and triple unit configurations, it stacks up to three units high while maintaining structural stability throughout. A triple-eccentric drive ensures consistent,durable operation, and the automatic restart function keeps experiments running seamlessly following any power interruption (magnetic drive available on request).

Stackable Large Shaker Incubators

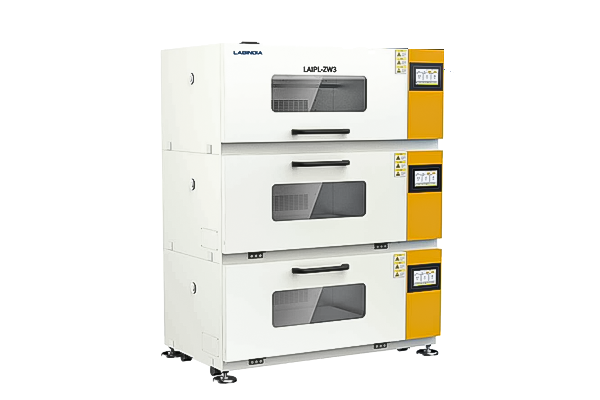

Image 1

Image 1

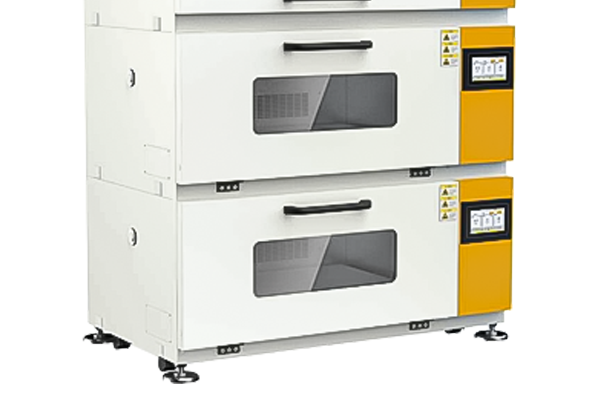

Image 2

Image 2

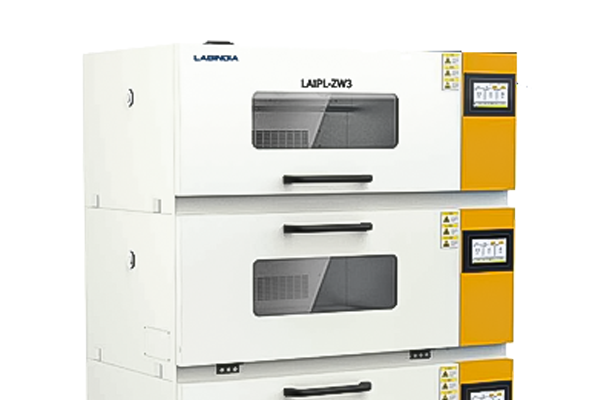

image 3

image 3

Stackable Large Shaker Incubators

The Large Stackable Shaker Incubator is a dependable and space-conscious incubation solution for modern laboratories. Available in single, double, and triple unit configurations, it stacks up to three units high while maintaining structural stability throughout. A triple-eccentric drive ensures consistent,durable operation, and the automatic restart function keeps experiments running seamlessly following any power interruption (magnetic drive available on request).

Operational Design

Features
Feature Image



     Precision and safety are built into every aspect of this incubator. The shaker platform pulls out freely for straightforward flask loading and unloading, supporting a range of clamping options to suit different experimental setups. An automatic door cut-off switch halts shaker motion as soon as the door is opened, and an over-temperature alarm shuts off the heaters before conditions exceed safe limits. A high-quality CFC-free compressor with R134a/R600a refrigerant maintains reliable and efficient cooling throughout operation.

    Key Features


    Stackable up to 3 units high with exterior dimensions scaling from 1360×820×630mm to 1360×820×1740mm.
    Shaker speed range of 30-300rpm (Φ26mm) and 30-250rpm (Φ50mm) with a speed accuracy of ±1rpm.
    Temperature control range of 4 to 60°C with an accuracy of ±0.1°C and uniformity of ±0.8°C at 37°C.
    Each tray measuring 928×530mm supports flask capacities up to 250ml×66, 500ml×45, 1000ml×28, or 2000ml×15.
    Automatic restart after power interruption with non-volatile setpoint memory.
    The door cut-off switch stops the shaker motion immediately when the door is opened.
    CFC-free compressor with R134a/R600a refrigerant for quiet and consistent cooling.
    The LCD touch screen displays all live readings and settings simultaneously.
    25mm access port for additional probes or instrumentation.
    USB data export, optional UV sterilization, and photosynthesis light bank available.



     Designed to accommodate multiple flask formats simultaneously, the incubator is well-suited for laboratories managing varying sample volumes at once. Noise levels remain low enough for shared lab environments, and with a run time of up to 999.9 hours, it supports both short-term tests and extended, uninterrupted experiments with equal consistency.

    Engineered to Perform

    Image 1
    Image 2
    image 3
