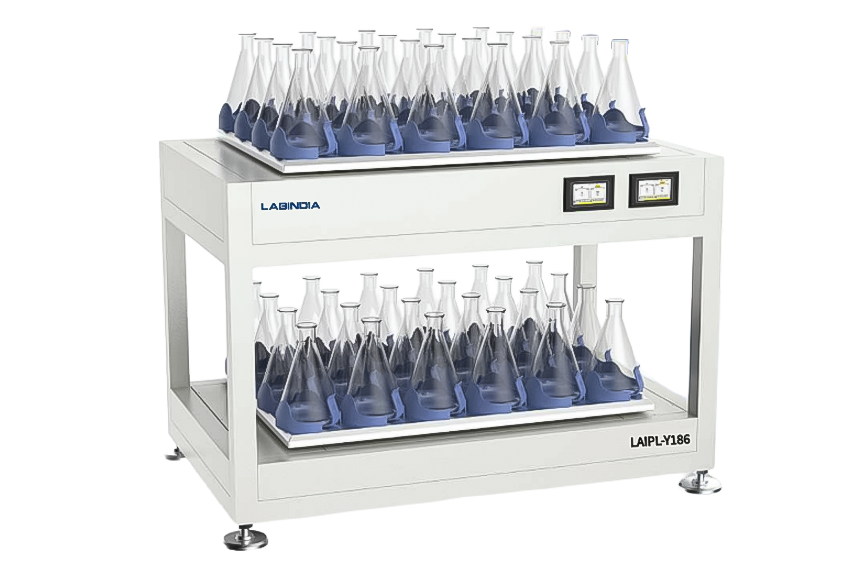

Large Orbital Shakers

The Large Orbital Shaker is a high-capacity shaking solution built for industrial-scale cultivation and demanding laboratory environments. Featuring two integrated shaking platforms running independently and simultaneously, it delivers consistent and reliable performance across large batch volumes. A triple-eccentric drive ensures smooth and durable operation, and the automatic restart function with non-volatile setpoint memory keeps studies on track after any power interruption.

Large Orbital Shakers

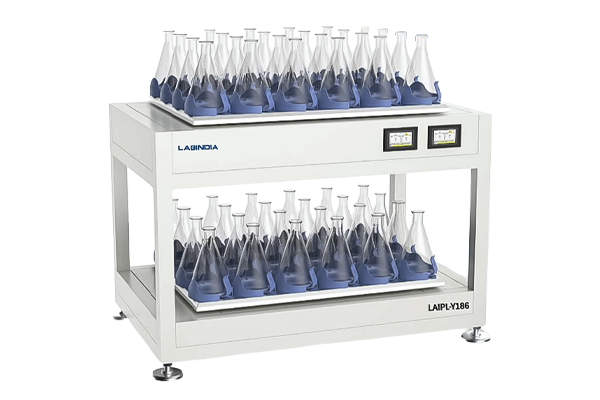

Image 1

Image 1

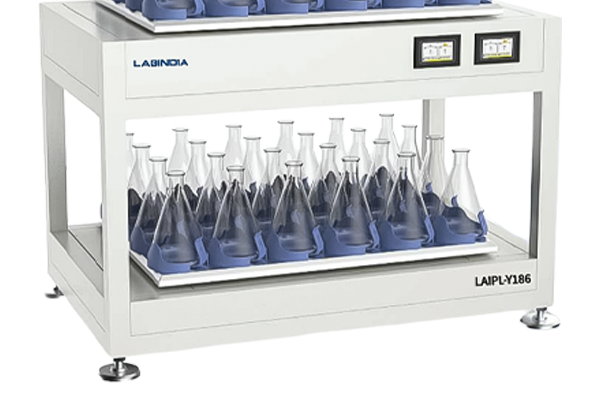

Image 2

Image 2

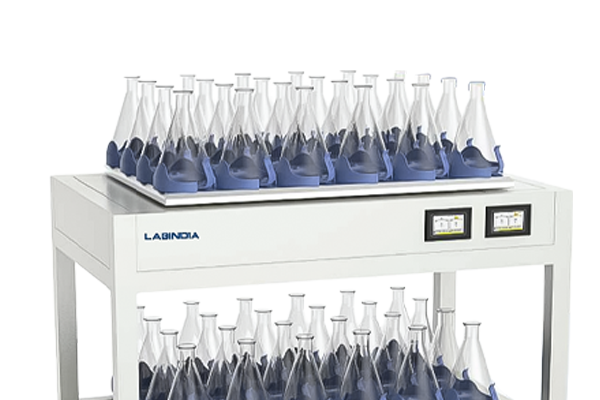

image 3

image 3

Large Orbital Shakers

The Large Orbital Shaker is a high-capacity shaking solution built for industrial-scale cultivation and demanding laboratory environments. Featuring two integrated shaking platforms running independently and simultaneously, it delivers consistent and reliable performance across large batch volumes. A triple-eccentric drive ensures smooth and durable operation, and the automatic restart function with non-volatile setpoint memory keeps studies on track after any power interruption.

Operational Design

Features
Feature Image



    Built for scale without compromising on control, the Large Orbital Shaker maintains precise shaking conditions across both platforms simultaneously. The corrosion-resistant stainless steel inner chamber and painted cold-rolled exterior ensure long-term durability in intensive use environments. Two LCD touch screens, one per platform, display all key settings and real-time readings simultaneously, giving operators full visibility at all times.

    Key Features


     With a generous tray size of 1074×793mm per platform and a shaker speed range of 30-250rpm, this system accommodates an exceptional range of flask formats and volumes. Maximum stainless steel capacity reaches 250ml×88, 500ml×63, 1000ml×35, 2000ml×24, 3000ml×20, or 5000ml×12, making it one of the most capable options for large-scale cultivation work. Noise levels stay below 55dB throughout operation.



    Built for scale without compromising on control, the Large Orbital Shaker maintains precise shaking conditions across both platforms simultaneously. The corrosion-resistant stainless steel inner chamber and painted cold-rolled exterior ensure long-term durability in intensive use environments. Two LCD touch screens, one per platform, display all key settings and real-time readings simultaneously, giving operators full visibility at all times.

    Operational Design

    Image 1
    Image 2
    image 3

    Product Highlights

    Features
    Feature Image



      • Dual independent shaking platforms with a tray size of 1074×793mm each

      • Shaker speed 30-250rpm with ±1rpm accuracy, Φ26mm standard and Φ50mm optional orbit diameter

      • Maximum capacity 250ml×88, 500ml×63, 1000ml×35, 2000ml×24, 3000ml×20, or 5000ml×12

      • Exterior dimensions 1400×880×1120mm with an approx. net weight of 314kg

      • Two LCD touch screens displaying all live readings and settings simultaneously

      • Automatic restart with non-volatile setpoint memory after power interruption

      • Built-in shaker platform with standard clamps on both units

      • USB data export for straightforward record keeping

      • Noise levels below 55dB throughout operation


       With a generous tray size of 1074×793mm per platform and a shaker speed range of 30-250rpm, this system accommodates an exceptional range of flask formats and volumes. Maximum stainless steel capacity reaches 250ml×88, 500ml×63, 1000ml×35, 2000ml×24, 3000ml×20, or 5000ml×12, making it one of the most capable options for large-scale cultivation work. Noise levels stay below 55dB throughout operation.
