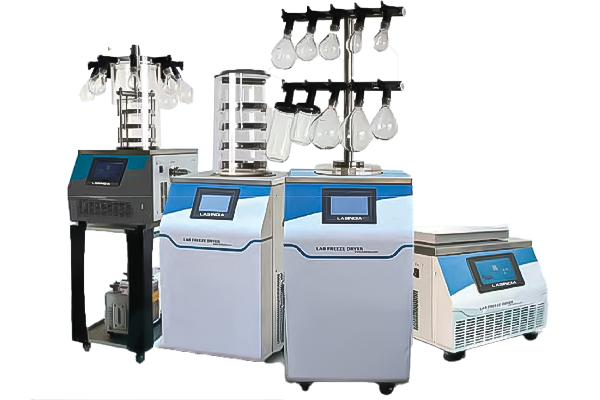

LI Series Lab Scale Freeze Dryer (Lyophilizer)
The LI-Series Lab Freeze Dryer is a precision-engineered lyophilizer built for reliable, low-volume freeze drying across medical, pharmaceutical, biological, chemical, and food applications. Featuring microprocessor control with a 7" LCD touch display, it tracks drying curves, vacuum levels, condenser temperature, and run time in real time. With flexible customization and extendable functions, it meets the demands of most conventional laboratory lyophilization needs.
Suggested Products
- Labindia Pilot Scale Freeze Dryer
- Labindia Production Scale Freeze Dryer
LI-10-R Series Bench-Top Mini Freeze Dryer
Model
LI-10-R
/ LI-10-R-80
LI-10-MR
/ LI-10-MR-80
LI-10-TP
/ LI-10-TP-80
LI-10-MTP
/ LI-10-MTP-80
LI-10-FT
/ LI-10-FT-80
LI-10-MT
/ LI-10-MT-80
Type
Normal
Manifold
Top-press
Manifold-press
T-type flask
T-type Ampoule
Dry Chamber Size (mm)
Φ260 × 430
Φ260 × 465
Φ260 × 490
Φ260 × 540
430 × 480 (H×L)
430 × 480 (H×L)
Total Shelf Area (m²)
0.12
0.12
0.08
0.08
—
—
Shelf Size (mm)
Φ200
Φ200
Φ180
Φ180
—
—
Shelves / Trays
4 shelves / 4 trays
4 shelves / 4 trays
3 shelves / 3 trays
3 shelves / 3 trays
—
—
Vial Loading Capacity
Φ12mm: 920
Φ16mm: 480
Φ22mm: 260
Φ12mm: 920
Φ16mm: 480
Φ22mm: 260
Φ12mm: 560
Φ16mm: 285
Φ22mm: 165
Φ12mm: 560
Φ16mm: 285
Φ22mm: 165
8 ports (4, 6, 12 ports optional)
24 ports for ampoule tube
Flask
—
8 pcs
—
8 pcs
8 pcs
—
Ice Remove Capacity
3–4 kg / 24h
LI-12 Floor Type Freeze Dryer
Model
LI-12-R
/ LI-12-R-80
LI-12-MR
/ LI-12-MR-80
LI-12-TP
/ LI-12-TP-80
LI-12-MTP
/ LI-12-MTP-80
LI-12-FT
/ LI-12-FT-80
LI-12-MT
/ LI-12-MT-80
Type
Normal
Manifold
Top-press
Manifold-press
T-type flask
T-type Ampoule
Dry Chamber Size (mm)
Φ260 × 430
Φ260 × 465
Φ260 × 490
Φ260 × 540
430 × 480 (H×L)
430 × 480 (H×L)
Total Shelf Area (m²)
0.12
0.12
0.08
0.08
—
—
Shelf Size (mm)
Φ200
Φ200
Φ180
Φ180
—
—
Shelves / Trays
4 shelves / 4 trays
4 shelves / 4 trays
3 shelves / 3 trays
3 shelves / 3 trays
—
—
Vial Loading Capacity
Φ12mm: 920
Φ16mm: 480
Φ22mm: 260
Φ12mm: 920
Φ16mm: 480
Φ22mm: 260
Φ12mm: 56
Φ16mm: 285
Φ22mm: 165
Φ12mm: 560
Φ16mm: 285
Φ22mm: 165
8 ports (4, 6, 12 ports optional)
24 ports for Ampoule tube
Flask
—
8 pcs
—
8 pcs
8 pcs
—
Ice Remove Capacity
4 kg / 24h
LI-18 Floor Type Freeze Dryer
Model
LI-18-R
/ LI-18-R-80
LI-18-MR
/ LI-18-MR-80
LI-18-TP
/ LI-18-TP-80
LI-18-MTP
/ LI-18-MTP-80
LI-18-FT
/ LI-18-FT-80
LI-18-MT
/ LI-18-MT-80
Type
Normal
Manifold
Top-press
Manifold-press
T-type flask
T-type Ampoule
Dry Chamber Size (mm)
Φ300 × 445
Φ300 × 465
Φ300 × 540
Φ300 × 570
610 × 600 (H×L)
610 × 600 (H×L)
Total Shelf Area (m²)
0.18 or 0.27
0.18 or 0.27
0.09
0.09
—
—
Shelf Size (mm)
Φ240
Φ240
Φ200
Φ200
—
—
Shelves / Trays
4 or 6 shelves / 4 or 6 trays
4 or 6 shelves / 4 or 6 trays
3 shelves / 3 trays
3 shelves / 3 trays
—
—
Vial Loading Capacity
Φ12mm: 1320 or 1980
Φ16mm: 740 or 1110
Φ22mm: 360 or 540
Φ12mm: 1320 or 1980
Φ16mm: 740 or 1110
Φ22mm: 360 or 540
Φ12mm: 990
Φ16mm: 555
Φ22mm: 270
Φ12mm: 990
Φ16mm: 555
Φ22mm: 270
8 ports (4, 6, 12 ports optional)
24 ports T-manifold for Ampoule tube
Flask
—
8 pcs
—
8 pcs
8 pcs
—
Ice Capture Capability
6 kg / 24h
LI-12S Floor Type Shelf Heating Program Control Freeze Dryer
Model
LI-12S-R
/ LI-12S-R-80
LI-12S-MR
/ LI-12S-MR-80
LI-12S-TP
/ LI-12S-TP-80
LI-12S-MTP
/ LI-12S-MTP-80
Type
Normal
Manifold
Top-press
Manifold-press
Dry Chamber Size (mm)
Φ260 × 470
Φ260 × 470
Φ260 × 470
Φ260 × 490
Total Shelf Area (m²)
0.12
0.12
0.08
0.08
Shelf Size (mm)
Φ200
Φ200
Φ180
Φ180
Shelf Heating Program
Included
Included
Included
Included
Trays Number
4 pcs
4 pcs
3 pcs
3 pcs
Vial Loading Capacity
Φ12mm: 920
Φ16mm: 480
Φ22mm: 260
Φ12mm: 920
Φ16mm: 480
Φ22mm: 260
Φ12mm: 56
Φ16mm: 285
Φ22mm: 165
Φ12mm: 560
Φ16mm: 285
Φ22mm: 165
Ice Remove Capacity
4 kg / 24h
LI-18S Floor Type Shelf Heating Program Control Freeze Dryer
Model
LI-18S-R
/ LI-18S-R-80
LI-18S-MR
/ LI-18S-MR-80
LI-18S-TP
/ LI-18S-TP-80
LI-18S-MTP
/ LI-18S-MTP-80
Type
Normal
Manifold
Top-press
Manifold-press
Dry Chamber Size (mm)
Φ300 × 485
Φ300 × 485
Φ300 × 485
Φ300 × 485
Total Shelf Area (m²)
0.18 or 0.27
0.18 or 0.27
0.09
0.09
Tray Size (mm)
Φ240
Φ240
Φ200
Φ200
Tray Number (pcs)
4 or 6
4 or 6
3
3
Vial Loading Capacity
Φ12mm: 1320 or 1980
Φ16mm: 740 or 1110
Φ22mm: 360 or 540
Φ12mm: 1320 or 1980
Φ16mm: 740 or 1110
Φ22mm: 360 or 540
Φ12mm: 615
Φ16mm: 345
Φ22mm: 183
Φ12mm: 615
Φ16mm: 345
Φ22mm: 183
Flask
—
8 pcs
—
8 pcs
Ice Capture Capability
6 kg / 24h
