CellDrop BF
The CellDrop BF is a brightfield-only automated cell counter built for straightforward tissue culture and low-debris cell counting applications. Powered by DeNovix's patented DirectPipette™ technology, it eliminates the need for consumable slides entirely, reducing both laboratory costs and plastic waste. Trusted by thousands of researchers worldwide, the CellDrop BF delivers fast, reproducible cell counts with minimal sample preparation.

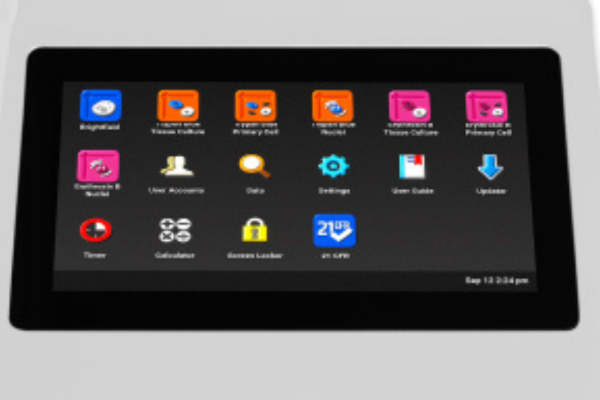

Image 1

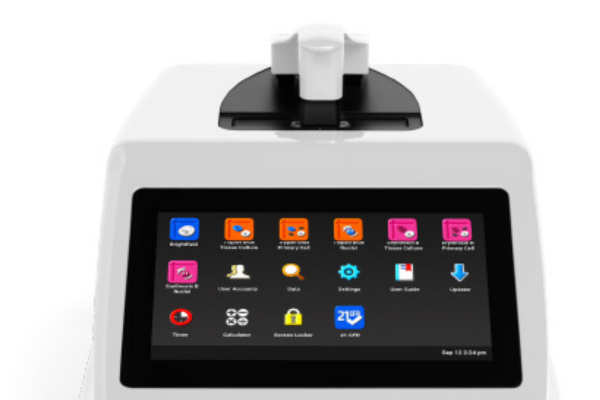

Image 2

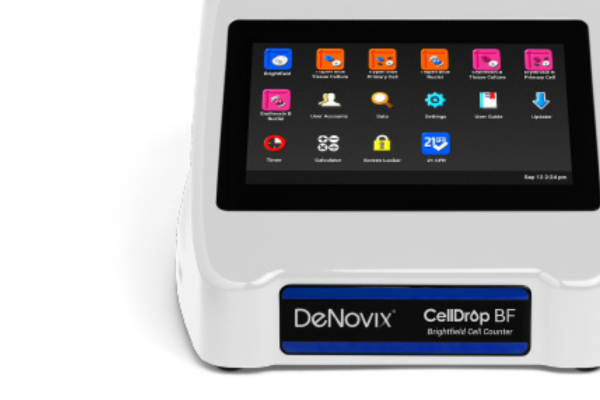

image 3

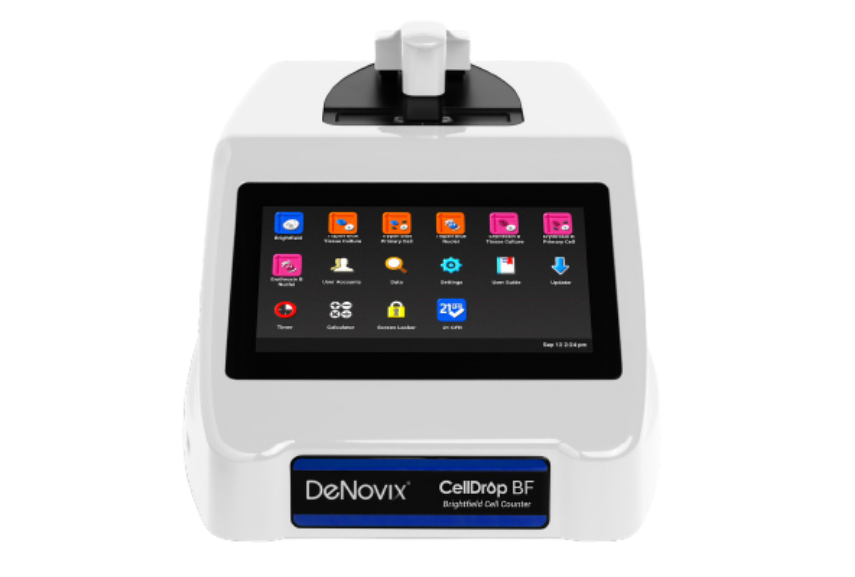

CellDrop BF
The CellDrop BF is a brightfield-only automated cell counter built for straightforward tissue culture and low-debris cell counting applications. Powered by DeNovix's patented DirectPipette™ technology, it eliminates the need for consumable slides entirely, reducing both laboratory costs and plastic waste. Trusted by thousands of researchers worldwide, the CellDrop BF delivers fast, reproducible cell counts with minimal sample preparation.
Working Principle
The CellDrop BF forms a measurement chamber between two permanent, parallel, optical-grade sapphire surfaces. As little as 5 µL of sample is loaded directly via pipette and held in position by surface tension. A 530 nm LED illuminates the sample, and the instrument captures a brightfield image, delivering a count result in 3 seconds. Cell size gating, advanced declustering, autofocus, and irregular cell detection algorithms are applied automatically through the pre-installed EasyApps™ software to ensure standardised, reproducible results across the laboratory team.
Key Features
The CellDrop BF operates across a dynamic range of 7×10⊃2; to 2.5×10⁷ cells/mL using a standard 4X objective suited for cells between 4 and 400 µm. Its wipe-clean sapphire surface eliminates cross-contamination risk between samples. With a 2-year warranty and flexible purchase options including unlimited, subscription, and pay-as-you-go count plans, it adapts to laboratories of all throughput levels.
