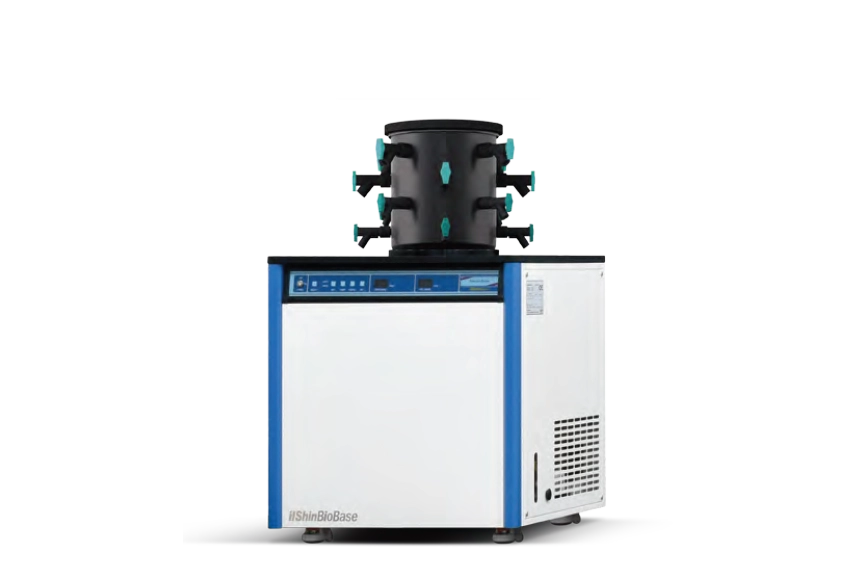

Ilshin Biobase Freeze Dryer

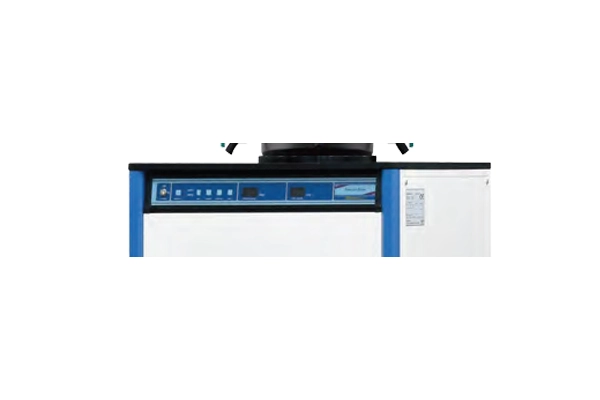

The Freeze Dryer Model is a laboratory freeze dryer built for reliable, repeatable lyophilisation. An optional 7" TFT LCD touch screen with AI-driven trend analysis enables automatic process monitoring, while the Micro Processor LED Controller puts full operational control, from power, vacuum, purge, pre-freezing, and mode selection, all can be found in one place. The LED display provides real-time condenser temperature and vacuum level readings throughout operation.
Ilshin Biobase Freeze Dryer
Ilshin Biobase Freeze Dryer
Ilshin Biobase Freeze Dryer
Ilshin Biobase Freeze Dryer
The Freeze Dryer Model is a laboratory freeze dryer built for reliable, repeatable lyophilisation. An optional 7" TFT LCD touch screen with AI-driven trend analysis enables automatic process monitoring, while the Micro Processor LED Controller puts full operational control, from power, vacuum, purge, pre-freezing, and mode selection, all can be found in one place. The LED display provides real-time condenser temperature and vacuum level readings throughout operation.
Operational Design
A single-compressor Auto Cascade System brings the condenser to −80°C in under 30 minutes, with no oil separator needed. The PTFE-coated condenser chamber resists acid and chemical corrosion, and its rounded ice formation allows fast, straightforward defrosting between cycles. Condensed ice must be cleared within 30 minutes to ensure uninterrupted operation and prevent contamination.
Key Features

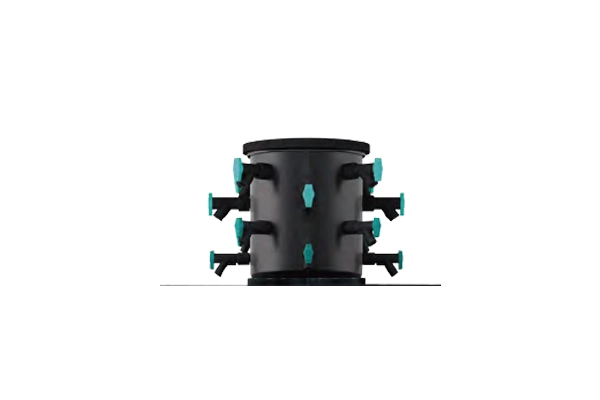

The Multi Drying Chamber supports ampoules, bottles, vials, flasks, Petri dishes, and bulk trays. A 20°–40° observation lid enables continuous process visibility, and horizontal loading simplifies bulk handling.The chamber maintains a full vacuum seal without requiring a mechanical locking device. Remote access via PC serial port allows off-site monitoring of temperature, vacuum, and system status.
Engineered to Perform
