Labindia Pilot Scale Freeze Dryer

The Labindia LI-FD Series is a pilot-scale automatic freeze dryer designed for precise lyophilization across pharmaceutical, biofield, and food applications. Featuring a rectangular SS304 chamber with pre-freezing and drying in the same unit, dual-stage cooling, PLC-controlled automation, and a 7" LCD touchscreen, it delivers reliable, contamination-free freeze drying without manual intervention.

Labindia Pilot Scale Freeze Dryer
LI-FD-200F-R

LI-FD-200F-R

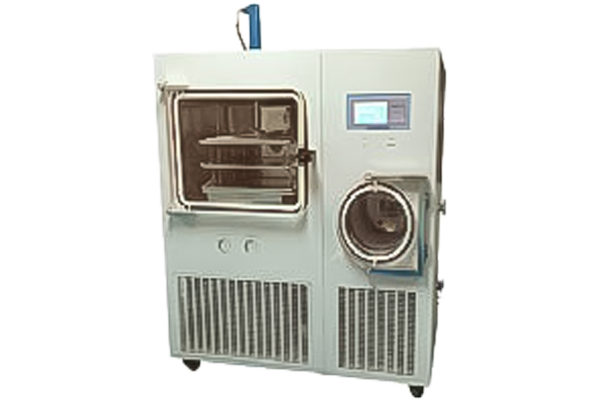

LI-FD-30F-TP

LI-FD-30F-TP

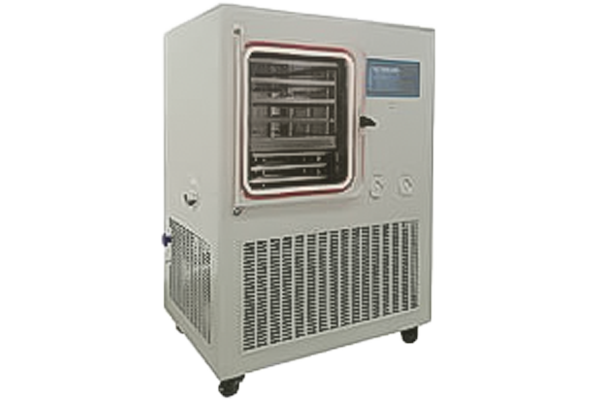

LI-FD-50F-R

LI-FD-50F-R

Labindia Pilot Scale Freeze Dryer

The Labindia LI-FD Series is a pilot-scale automatic freeze dryer designed for precise lyophilization across pharmaceutical, biofield, and food applications. Featuring a rectangular SS304 chamber with pre-freezing and drying in the same unit, dual-stage cooling, PLC-controlled automation, and a 7

LI-FD-20F Series

Model

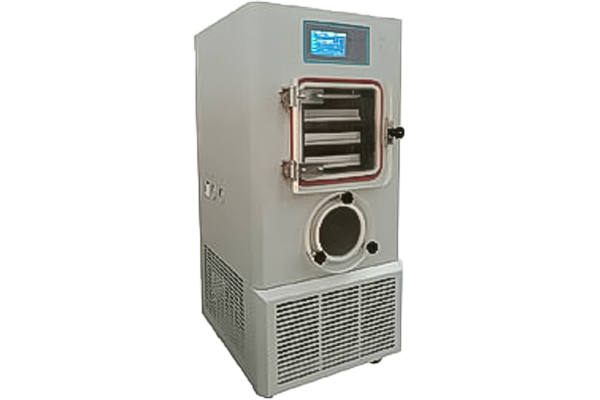

LI-FD-20F-R

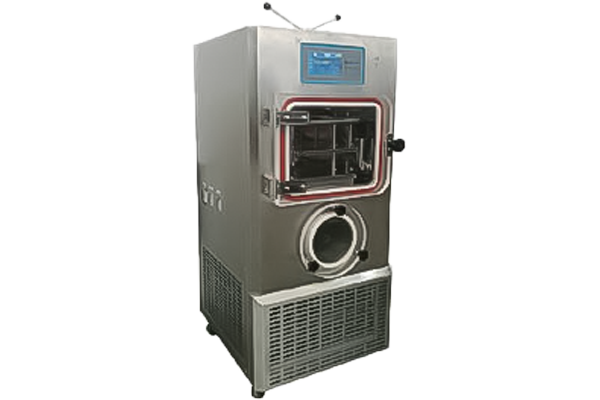

LI-FD-20F-TP
Type / Configuration
Regular
Top-press
Freeze-Drying Area
0.3 m²
1.2 m²
Shelf Quantity
3 pcs
2+1 pcs
Vial Loading Capacity
Φ22 bottle: 440
Φ16 bottle: 868
Φ12 bottle: 1554
Φ22 bottle: 440
Φ16 bottle: 868
Φ12 bottle: 1554
Sample Loaded Capacity
3 L
13 L
Cold Trap Temperature
≤ -75°C
≤ -75°C
Water-Capture Capability
6 kg / 24h
16 kg / 24h
Shelf Temperature Range
-50°C ~ 70°C

LI-FD-30F Series

Model

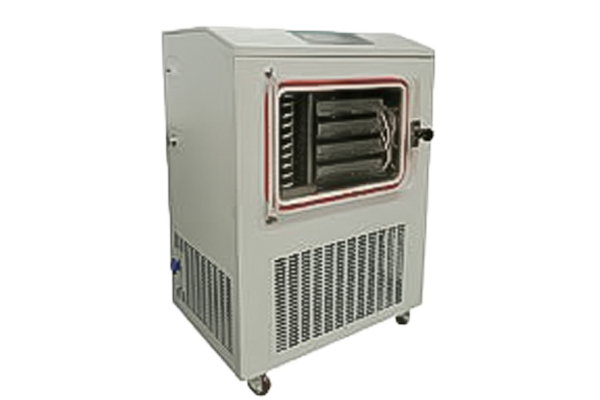

LI-FD-30F-RE

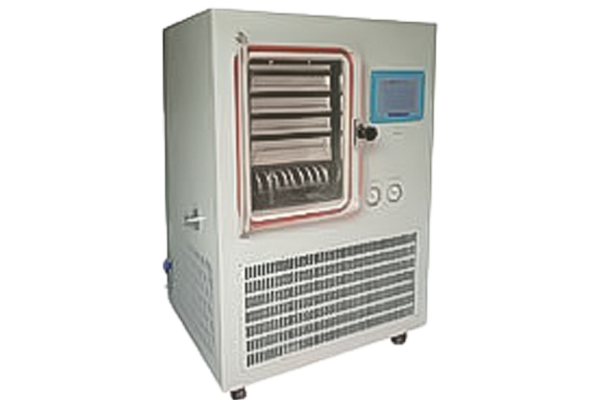

LI-FD-30F-R
LI-FD-30F-TP
Type / Configuration
Regular, electric
Regular
Top-press
Freeze-Drying Area
0.4 m²
0.4 m²
0.306 m²
Shelf Quantity
4+1 pcs
4+1 pcs
3+1 pcs
Vial Loading Capacity
Φ22 vials: 728
Φ16 vials: 1440
Φ12 vials: 2600
Φ22 vials: 728
Φ16 vials: 1440
Φ12 vials: 2600
Φ22 vials: 546
Φ16 vials: 1080
Φ12 vials: 1950
Sample Loaded Capacity
4 L
4 L
3 L
Cold Trap Temperature
≤ -60°C
≤ -75°C
≤ -75°C
Shelf Temperature Range
-50°C ~ 70°C
Ice Capture Capability
8 kg / 24h

LI-FD-50F Series

Model

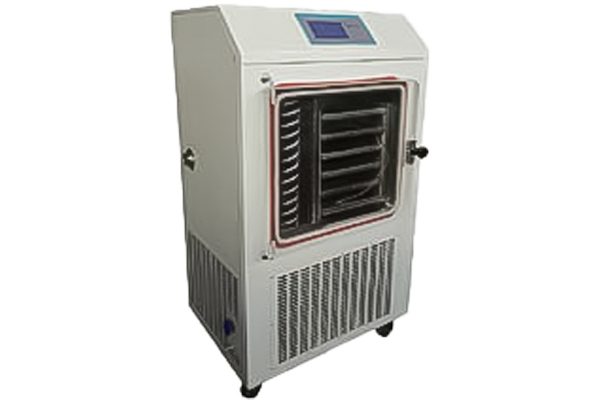

LI-FD-50F-RE
LI-FD-50F-R

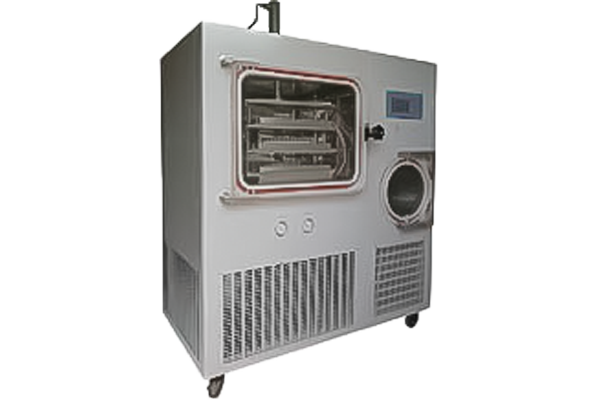

LI-FD-50F-TP
Type / Configuration
Regular, electric
Regular
Top-press
Freeze-Drying Area
0.6 m²
0.7 m²
0.5 m²
Shelf Quantity
6 pcs
4+1 pcs
3+1 pcs
Vial Loading Capacity
Φ22 vials: 1408
Φ16 vials: 2728
Φ12 vials: 4920
Φ22 vials: 1408
Φ16 vials: 2728
Φ12 vials: 4920
Φ22 vials: 1050
Φ16 vials: 2058
Φ12 vials: 3705
Sample Load Capacity
6 L
7 L
5 L
Cold Trap Temperature
≤ -60°C
≤ -75°C
≤ -75°C
Shelf Temperature Range
-50°C ~ 70°C
Ice Capture Capability
10 kg / 24h

LI-FD-100F Series

Model

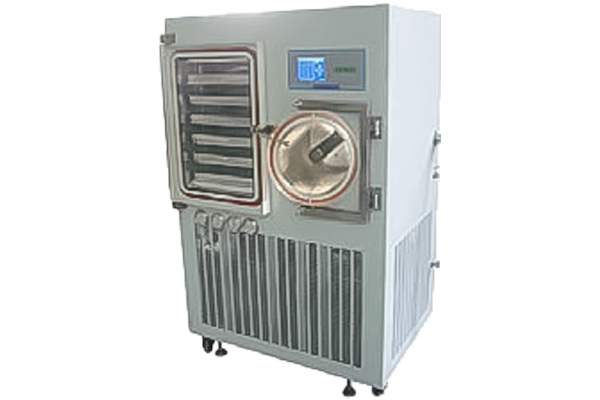

LI-FD-100F-R

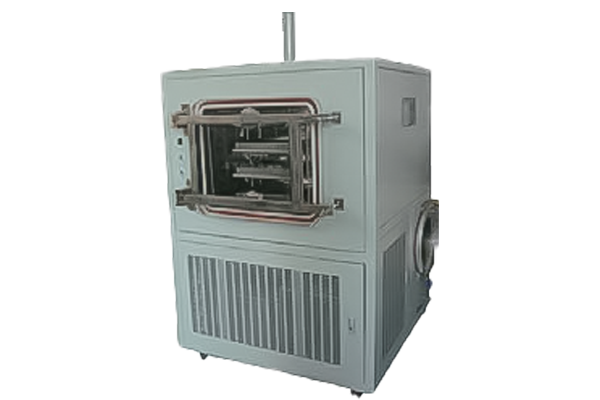

LI-FD-100F-TP
Type / Configuration
Regular
Top-press
Drying Area
1.0 m²
1.15 m²
Shelf Quantity
6+1 layer
4+1 layer
Vial Loading Capacity
Φ22 vials: 2112
Φ16 vials: 4092
Φ12 vials: 7920
Φ22 vials: 2460
Φ16 vials: 4788
Φ12 vials: 8624
Raw Material Loaded Capacity
10 L
11 L
Condenser Temperature
≤ -75°C
≤ -70°C
Shelf Temperature Range
-50°C ~ 70°C
Condenser Capability
15 kg / 24h

LI-FD-200F Series

Model

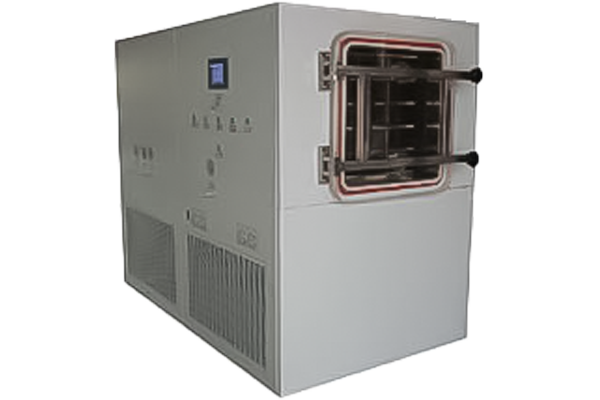

LI-FD-200F-R

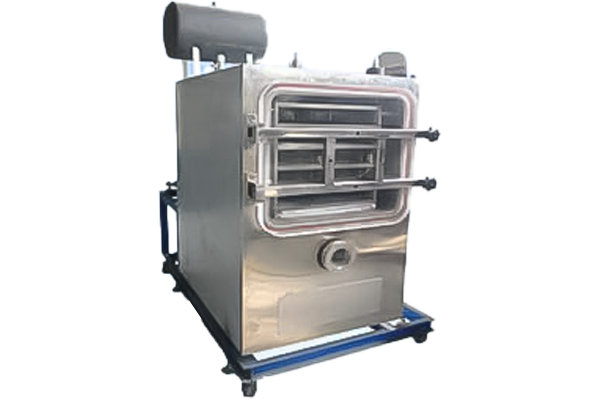

LI-FD-200F-TP
Type / Configuration
Regular
Top-press
Freeze-Drying Area
2.25 m²
1.98 m²
Shelf Quantity
5+1 pcs
4+1 pcs
Vial Loading Capacity
Φ22 vials: 4100
Φ16 vials: 7800
Φ12 vials: 14400
Φ22 vials: 3600
Φ16 vials: 6800
Φ12 vials: 12600
Raw Material Load Capacity
22 L
20 L
Max Temperature
≤ -75°C
≤ -75°C
Shelf Temperature Range
-50°C ~ 70°C
Water-Capture Capability
40 kg / 24h
