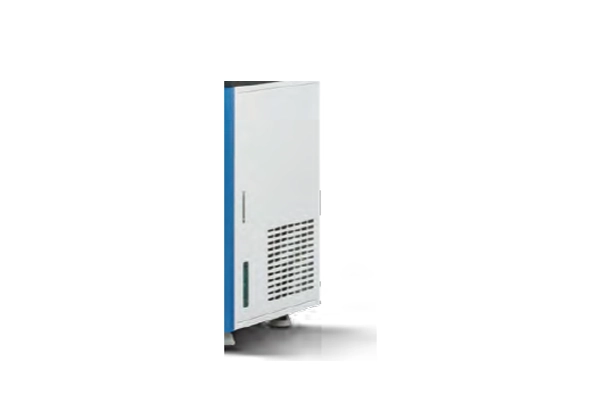

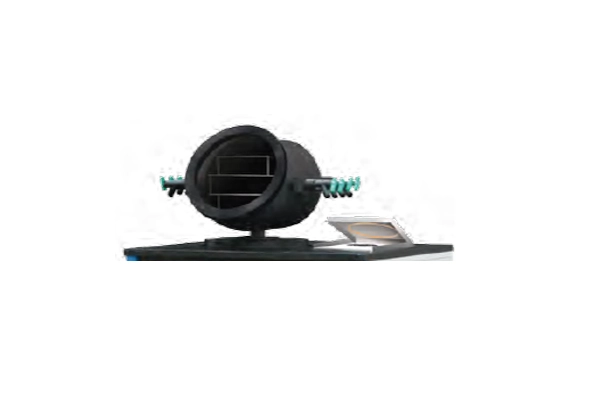

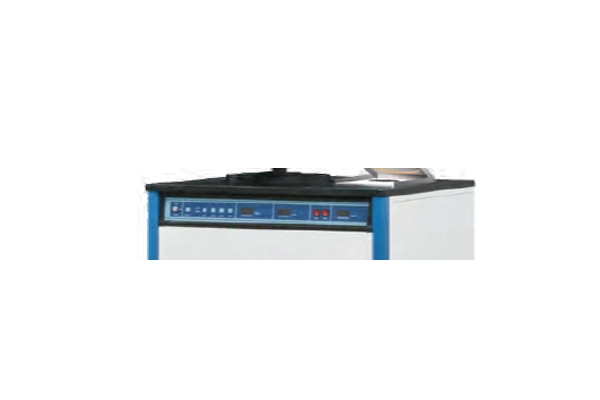

Ilshin Biobase Freeze Dryerwith Concentrator
The Freeze Dryer with Micro Concentrator is a compact freeze dryer with an integrated micro concentrator, purpose-built for efficient sample concentration and drying within limited laboratory space. It handles both aqueous and organic solvents, delivering concentrated or fully dried outputs to suit a broad range of applications.
Ilshin Biobase Freeze Dryerwith Concentrator
Ilshin Biobase Freeze Dryerwith Concentrator
Ilshin Biobase Freeze Dryerwith Concentrator
Ilshin Biobase Freeze Dryerwith Concentrator
The Freeze Dryer with Micro Concentrator is a compact freeze dryer with an integrated micro concentrator, purpose-built for efficient sample concentration and drying within limited laboratory space. It handles both aqueous and organic solvents, delivering concentrated or fully dried outputs to suit a broad range of applications.
Operational Design
The MCFD Model applies high-speed centrifugal force under vacuum to evaporate solvents from the sample, yielding either a concentrated liquid or a completely dried solid — soluble or insoluble — depending on process requirements. A built-in heating device is included as standard, ensuring fast and consistent drying performance throughout the cycle.
Key Features
The system runs an STS-grade rotor at 2,000 RPM driven by an MPB Multi-Phase Bipolar DC Motor. It supports three tube formats - 1.5ml × 80, 15ml × 24, and 50ml × 8 — within a compact footprint of 250(W) × 285(D) × 230(H) mm. Operating on 220V / 60Hz / 1PH / 1.8A, a tube heater is included as standard for enhanced drying efficiency.
Engineered to Perform
