Horizontal Autoclaves
The Horizontal Autoclave (Rectangular) is a robust and efficient sterilisation instrument designed for maximum thermodynamic efficiency. Built with a stainless steel 304/316 grade inner chamber, SS304 grade jacket and door, and strong argon welded joints mounted on a corrosion resistant stand, it is engineered for long-lasting performance in demanding laboratory and industrial environments. Available in capacities ranging from 182 to 3456 litres, with customised sizes also available on request.

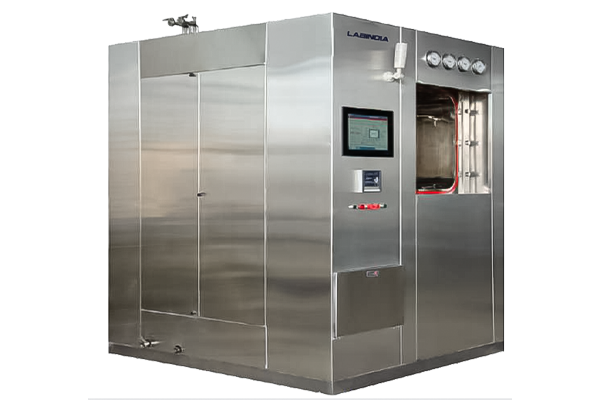

Image 1

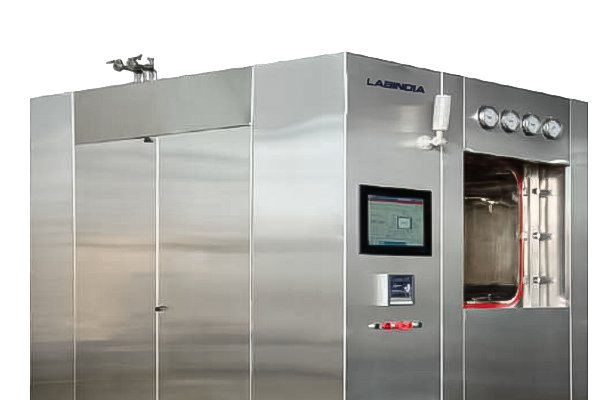

Image 2

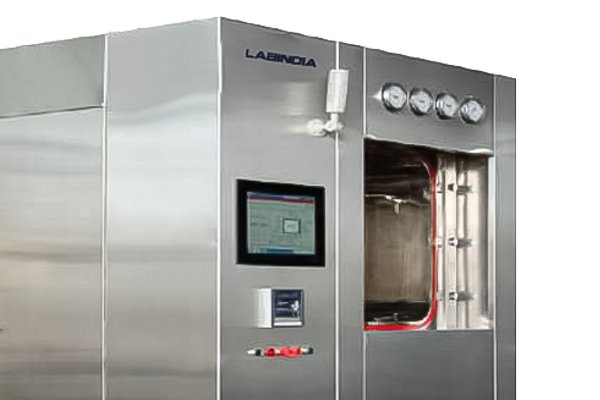

image 3
Horizontal Autoclaves
The Horizontal Autoclave (Rectangular) is a robust and efficient sterilisation instrument designed for maximum thermodynamic efficiency. Built with a stainless steel 304/316 grade inner chamber, SS304 grade jacket and door, and strong argon welded joints mounted on a corrosion resistant stand, it is engineered for long-lasting performance in demanding laboratory and industrial environments. Available in capacities ranging from 182 to 3456 litres, with customised sizes also available on request.
Operational Design
The Horizontal Autoclave (Rectangular) operates on a downward displacement principle, ensuring minimal quantities of water and steam are required for optimum sterilisation. A steam trap provides effective and economical removal of air and condensate from the chamber, helping achieve sterilisation temperature faster. Standard working pressure is 1.2 kg/cm⊃2; at 121 °C, with an optional working pressure of 2.1 kg/cm⊃2; at 134 °C.

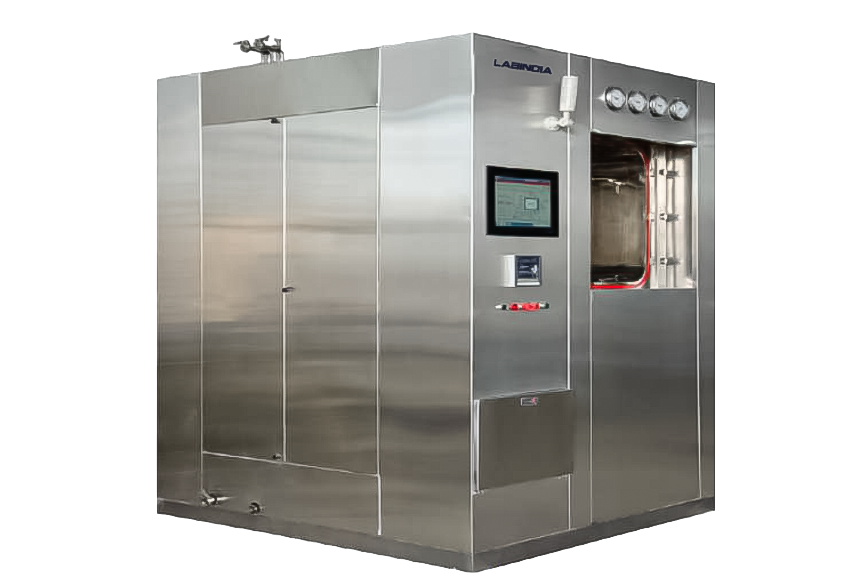

Key Features
The centralised control point of the Horizontal Autoclave (Rectangular) features a multi-port operating valve and solenoid valve for complete cycle control, fast and slow exhaust speed options, a compound gauge for pressure reading, and a pressure gauge to read jacket pressure. A power ejector fitted in the multi-port operating valve circulates air in the chamber for vacuum drying with minimum heat loss.
