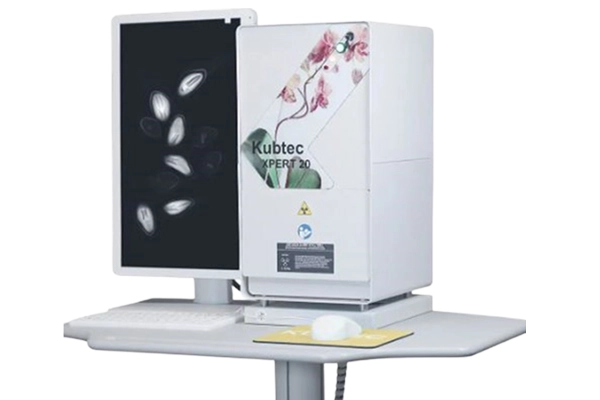

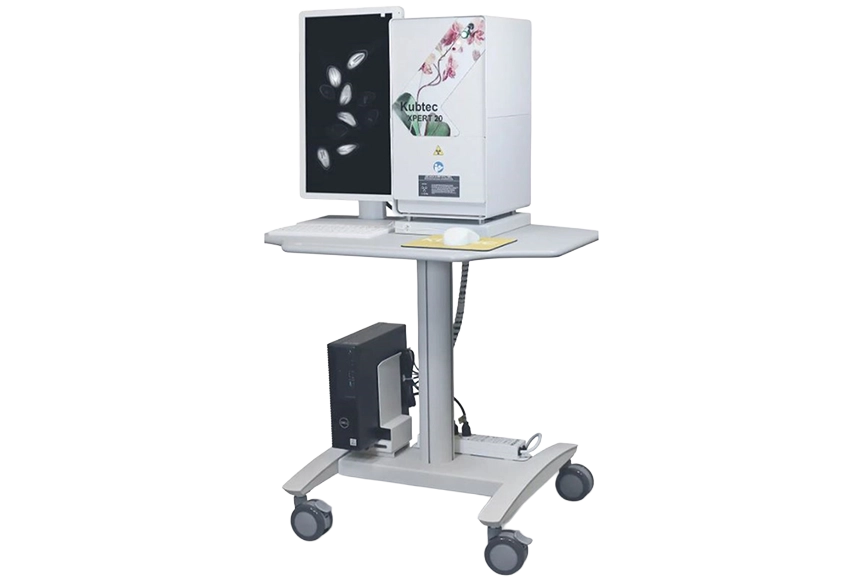

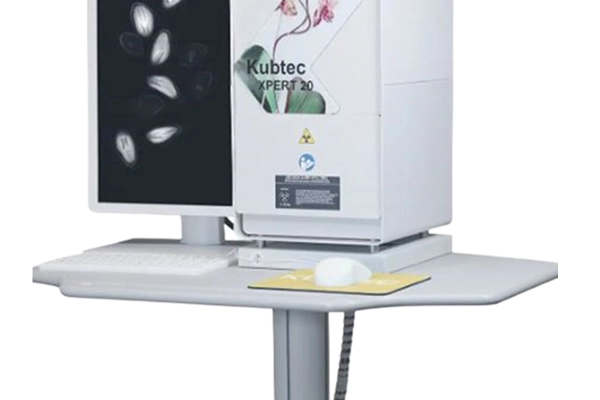

XPERT® 20 Benchtop X-Ray System
The XPERT® 20 Benchtop X-Ray System is a compact digital imaging solution designed primarily for ex vivo sample analysis. Built for laboratories that require high-resolution imaging in a small footprint, this system delivers clear and detailed X-ray results without occupying significant laboratory space.
XPERT® 20 Benchtop X-Ray System
The XPERT® 20 Benchtop X-Ray System is a compact digital imaging solution designed primarily for ex vivo sample analysis. Built for laboratories that require high-resolution imaging in a small footprint, this system delivers clear and detailed X-ray results without occupying significant laboratory space.
Detailed Analysis
Operating within a tube potential range of 20 – 50 kV and 1 mA current, the XPERT® 20 provides controlled imaging for small biological specimens. With a 49.5 µm pixel size and 50 µm nominal focal spot, it captures fine structural details across a 12 cm × 7 cm imaging area.
Key Features
This system is well-suited for researchers working with isolated biological samples where clarity and repeatability are essential. Its benchtop configuration makes it practical for academic labs and research facilities requiring reliable imaging without complex setup.
Ideal for Applications
