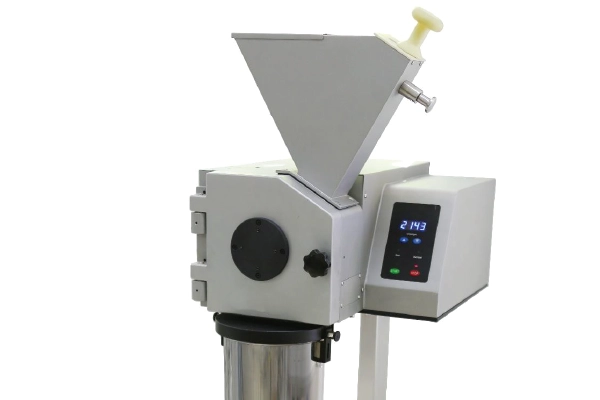

Cutting mill (Multi-functional) C25

The Cutting Mill C25 from Labindia is a powerful, versatile, and user-friendly instrument ideal for precision grinding of various sample types—ranging from soft food-grade materials to hard, fibrous, or brittle industrial samples. Designed for both batch and continuous operations, it delivers uniform final fineness up to 100 µm and is suitable for use in environmental, chemical, and material testing applications.

Product Brochure: Download Full Catalogue

AIR JET SIEVE SHAKER JS1100 (TOUCHSCREEN)

Vibratory Disc Mill VDM 1100

Bomb Calorimeter – BCI-3000

Cutting mill (Multi-functional) C25

The Cutting Mill C25 from Labindia is a powerful, versatile, and user-friendly instrument ideal for precision grinding of various sample types—ranging from soft food-grade materials to hard, fibrous, or brittle industrial samples. Designed for both batch and continuous operations, it delivers uniform final fineness up to 100 µm and is suitable for use in environmental, chemical, and material testing applications.

Smart Safety

Equipped with a high-speed braking motor and interlocking safety features, the C25 stops instantly when the door is opened—ensuring maximum operator safety during use.

Key Features

Final fineness up to 100 µm for high-precision grinding

Supports batch and continuous processing modes

Adjustable speed range from 500 to 4000 rpm

Handles tough, soft, fibrous, and brittle dry samples

Integrated dust collection system to prevent contamination

Compatible with cyclone separator for improved uniformity and cooling

Multiple sieve sizes available (0.20 mm to 20.00 mm)

Heavy-metal-free construction options for sensitive applications

Quick-locking mechanism and braking motor for safety

Easy-to-clean modular design with removable components

Low noise operation (≤ 70 dB)

CE certified and IP66 rated for durability and safety

Large handling capacity of ≥30 kg/h

Accessory options include vibratory feeder and sample receivers up to 30 L

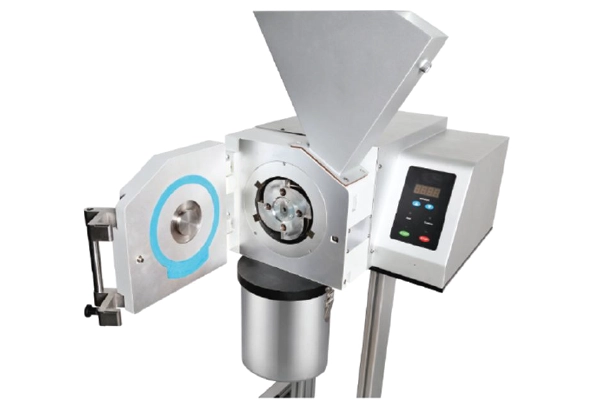

Interchangeable grinding inserts and rotors for application flexibility

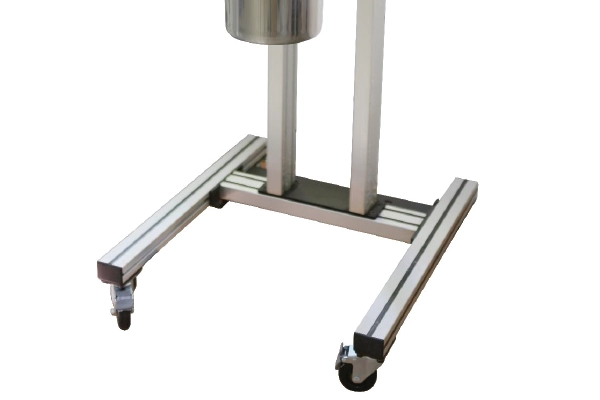

Ergonomic design with mobility via optional casters

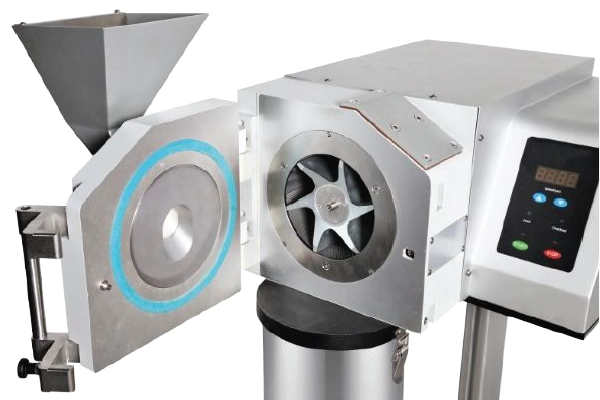

Easily switch between Cutting, Cross Beater, and Rotor Beater modes to handle a wide variety of sample types—ranging from soft food materials to hard industrial waste—all with precision and ease.

Versatile Grinding
